DISTRIBUTORS, IMPORTERS & STOCKISTS OF ALL GRADES OF HIGH SPEED STEEL
HSS M2 is a molybdenum based standard high speed tool steel which is commonly used worldwide for generation of cutting tools such as drills, reamers, gear cutters, broaches, die steel. It has components such as Molybdenum (Mo), Tungsten (W) & Cobalt (Co), Vanadium (V) grades, chrome making it as fine grade tool steel to generate hardness upto 60-62 HRC post heat treatment. The carbides in it are small and evenly distributed. It has high wear resistance. This grade is most effective and economically priced making it most commonly used high speed steel grade.
HIGH SPEED STEEL ORIGIN / PRODUCERS MAKES:
- POWMEX GRAPHITE STEEL
- POLDI MAKE HSS
- BOHLER STEEL
- THYSSENKRUPP STEEL
- ERASTEEL STEEL
- NACHI FAX STEEL
- ZAPP STEEL
- HITACHI POWDER STEEL
- DEW STEEL
- INDIAN STEEL MAKES
HSS M2 Specifications / Basic Parameters –

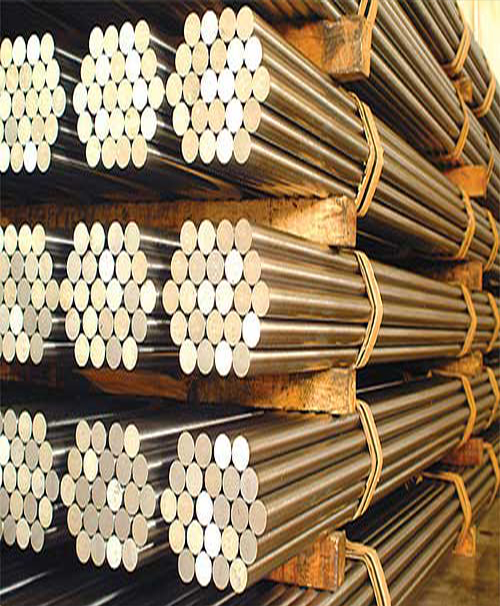

ROUND Diameter:- Small Dia : 3.5mm to 22 mm
- Regular Dia: 24mm to 350 mm
FLAT ROLLED BARS: (W) 8mm – 250mm to (H) 10mm – 100mm x Length (meters)
SQUARE ROLLED BARS: 10mm to 200mm
| Grades | Average Chemical Composition % | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Aisi No. | Work No. | C. | Si. | Mn. | Cr. | Mo. | V. | W. | Co. | ||
| M-2 | 1.3343 | 0.90 | 0.45 | 0.40 | 4.1 | 5.0 | 1.9 | 6.4 | |||
| Applications: Knives, thread cutting & twist drills, Gear Cutters, Rolls, tapes, broaches & milling tools, reamers, metal/circular saws, wood working & cold forming tools. | |||||||||||
Standard |
|||||
|---|---|---|---|---|---|
| Bohler | AISI | BS | IS | JIS | DIN |
| S 600 | M2 | BM 2 | XT87W6Mo5 Cr4V2 | SKH-51 | S 6-5-2 (1.3343) |
Elements in HSS properties
Standard grade for High Speed Steels; owing to its balanced composition has good toughness and cutting performance, hence many applications
- Carbon : : forms carbides, increases wear resistance, is responsible for the basic matrix hardness. High Speed Steel with high molybdenum and carbon. It has high wear resistance, high red hardness and good toughness. With its low vanadium content, this grade has very good grind ability.
- Tungsten and molybdenum: improve red hardness, retention of hardness and high temperature strength of the matrix, form special carbides of great hardness.
- Vanadium: forms special carbides of supreme hardness, increases high temperature wear resistance, retention of hardness and high temperature strength of the matrix.
- Chromium: promotes depth hardening, produces readily soluble carbides.
- Cobalt: HSS containing cobalt content is a high performance steel with good cutting capability & ensures high red hardness and tempering retention. It is particularly suitable in thermal stress situations and for intermittent cutting
Characteristic properties HSS grades:-
- High working hardness
- High wear resistance
- High retention of hardness and red hardness
- Excellent toughness
APPLICATIONS
Heavy duty milling cutters, broaches, reamers, cutting tools, shaper cutters & rotary shave cutters for machining hard materials, socket head & hole punching dies for producing nuts & tap drills. Die blocks, broaching tools, cold extrusion rams, tools subject to extensive mechanical stresses. Heavy roughing work, machining high tensile steels, difficult to machine cast steel, grey cast iron, chill castings NF metals & non-metal material. Turning, planning & shaping tool, rough milling cutters. End mills, hobs, shaper cutters, cold forming tools, stamping & punching tools, cutting tools, working rolls for cluster rolling stand.
