DISTRIBUTORS, IMPORTERS & STOCKISTS OF ALL GRADES OF POWDER HIGH SPEED STEEL
ASP 4 produced by powder metallurgy with an homogeneous structure and a good toughness. Its wear resistance is good. Uniform and high dimensional stability after heat treatment
PM4 Steel - (Powder HSS M4) also known as ASP4 is a high Vanadium-chromium- molybdenum-tungsten alloyed Powder based HSS steel Suitable where adhesive wear & chipping are the dominant problems occur such as SS, Mild steel, copper, aluminum or thicker work material
Powder made steel formation process results in a homogeneous microstructure with a finer, more uniform carbide distribution imparting superior dimensional stability, grind ability and toughness when compared to steels produced by conventional processes
POWDER METALLURGY HIGH SPEED STEEL ORIGIN MAKES:
- ERASTEEL ASP STEEL
- CRUCIBLE REX STEEL
- BOHLER S STEEL
- THYSSENKRUPP STEEL
- NACHI FAX STEEL
- ZAPP STEEL
- ASSAB STEEL
- POLDI MAKE HSS
- HITACHI POWDER STEEL
- POWMEX GRAPHITE STEEL
ASP 4 Specifications / Basic Parameters –

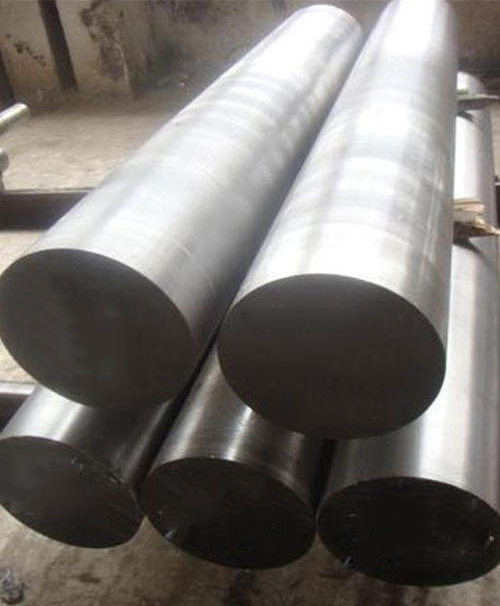

ROUND Dia:- Small Dia : 6 mm to 22 mm
- Regular Dia: 24mm to 350 mm
SQUARES: Sizes varying from 10*10mm to 200*200mm
| Grades | Average Chemical Composition % | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Aisi No. | Work No. | C. | Si. | Mn. | Cr. | Mo. | V. | W. | Co. | Oths. | |
| S690 | 1.3351 | ASP 4 | 1.33 | 4.3 | 4.9 | 4.1 | 5.9 | ||||
| Applications: High speed steel produced by the powder metallurgy method for heavy duty machining tools e.g. for machining of nonferrous metals alloys, such as Ti-base & Ai-alloys. Tools exposed to high compressive stresses, e.g. in fine blanking tools for high-strength materials. | |||||||||||
EQUAVALENT GRADES |
|||||
|---|---|---|---|---|---|
| ERASTEEL | Bohler | Thyssenkrupp | Crucible | DIN | |
| ASP 4 | S 690 | TSP4 | CPM REX4 | HS 6-5-4 (1.3351) | |
| Heat treatment Hardening | 1st preheating | up to approximately 490°C in air convection furnaces | |||
| 2nd and 3rd preheating | 850 °C 850 and 1050 °C | ||||
| Austenitising temperature(1) | 1050-1200 °C | ||||
| Hardening medium | hot bath 550°C/air oil air or gas at high pressure | ||||
| Tempering | not less than 3 times one hour at 540 - 570°C | ||||
| Hardness | 64-67 HRC | ||||
| Soft annealing | 870-900 °C | Cooling in furnace | Annealed hardness | ||
| 10°C/h down to 540°C | 300 HB | ||||
APPLICATIONS WHERE POWDER METALLURGY HIGH SPEED STEEL IS REQUIRED:
Heavy duty milling cutters, broaches, reamers, cutting tools, shaper cutters & rotary shave cutters for machining hard materials, socket head & hole punching dies for producing nuts & tap drills.
Die blocks, broaching tools, cold extrusion rams, tools subject to extensive mechanical stresses.
Heavy roughing work, machining high tensile steels, difficult to machine cast steel, grey cast iron, chill castings NF metals & non-metal material.
Turning, planning & shaping tool, rough milling cutters.
End mills, hobs, shaper cutters, cold forming tools, stamping & punching tools, cutting tools, working rolls for cluster rolling stand.
Highly stressed tools for machining high-strength steels, cast steels & difficult machinable materials at high cutting feed and speed.
