DISTRIBUTORS, IMPORTERS & STOCKISTS OF ALL GRADES OF POWDER HIGH SPEED STEEL
ASP 2052 is Powder form HSS T42, produced by powder metallurgy with an homogeneous structuure and a good toughness. Its wear resistance is good. Uniform and high dimensional stability after heat treatment
PM 52 Steel - also known as ASP2052 is a very high performance Powder metallurgical material having a optimal high cobalt (8%)– high vanadium- high Tungsten(10%) -chromium- molybdenum alloyed steel, It is heat treatable to HRC 67-69. Its high carbon, vanadium and Cobalt contents provide abrasion resistance comparable to that of T15 and red hardness superior to that of M42. With its high hardness, fine grain size and uniform carbide distribution, it’s an outstanding choice for special purpose cutting tools requiring high red hardness, high abrasion resistance, and good toughness. Suitable for machining of nickel-base and titanium alloys, for heavy and interrupted cuts, such as gear hobs, shapers, milling cutters, twist drills, taps and broaching tools
Powder made steel formation process results in a homogeneous microstructure with a finer, more uniform carbide distribution imparting superior dimensional stability, grind ability and toughness when compared to steels produced by conventional processes
POWDER METALLURGY HIGH SPEED STEEL ORIGIN MAKES:
- ERASTEEL ASP STEEL
- CRUCIBLE REX STEEL
- BOHLER S STEEL
- THYSSENKRUPP STEEL
- NACHI FAX STEEL
- ZAPP STEEL
- ASSAB STEEL
- POLDI MAKE HSS
- HITACHI POWDER STEEL
- POWMEX GRAPHITE STEEL
ASP 2052 Specifications / Basic Parameters –

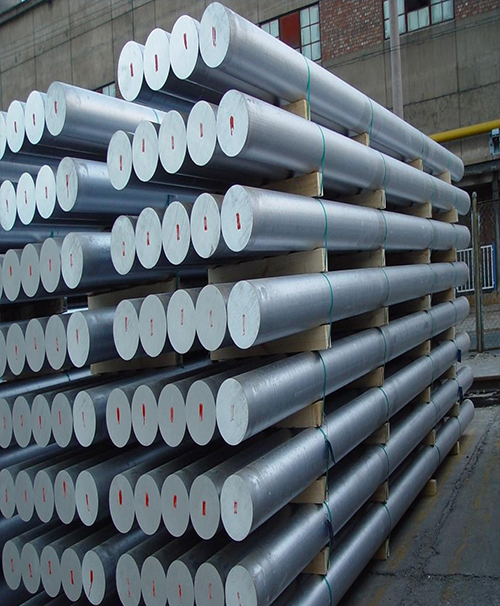

ROUND Dia:- Small Dia : 6 mm to 22 mm
- Regular Dia: 24mm to 350 mm
SQUARES: Sizes varying from 10*10mm to 200*200mm
| Grades | Average Chemical Composition % | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Aisi No. | Work No. | C. | Si. | Mn. | Cr. | Mo. | V. | W. | Co. | Oths. | |
| S390 | 1.3253 | ASP 2052 | 1.6 | 4.8 | 2.0 | 5.0 | 10.5 | 8.0 | |||
| Applications: High speed steel produced by the powder metallurgy method for heavy duty machining tools e.g. tools for nonferrous metals such as Ni-base & Ti-alloys. Tools used under extreme compressive stresses, e.g. precision blanking tools for high-strength materials. | |||||||||||
EQUAVALENT GRADES |
|||||
|---|---|---|---|---|---|
| ERASTEEL | Bohler | Thyssenkrupp | NACHI | CRUCIBLE | DIN |
| ASP 2052 | S 790 | TSP52 | FAX40 | CPM REX76 | HS 10-5-3-9 (1.3253) |
Heat treatment Hardening |
|||||
|---|---|---|---|---|---|
| 1st preheating | up to approximately 490°C in air convection furnaces | ||||
| 2nd and 3rd preheating | 850 °C 850 and 1050 °C | ||||
| Austenitising temperature(1) | 1050-1200 °C | ||||
| Hardening medium | hot bath 550°C/air oil air or gas at high pressure |
||||
| Tempering | not less than 3 times one hour at 540 - 570°C | ||||
| Hardness | 64-67 HRC | ||||
| Soft annealing | 870-900 °C | ||||
| Stress-relieve annealing | 600-650 °C | ||||
| Cooling in furnace | 10°C/h down to 540°C | ||||
| Annealed hardness | < 300 HB | ||||
APPLICATIONS WHERE POWDER METALLURGY HIGH SPEED STEEL IS REQUIRED:
Heavy duty milling cutters, broaches, reamers, cutting tools, shaper cutters & rotary shave cutters for machining hard materials, socket head & hole punching dies for producing nuts & tap drills.
Die blocks, broaching tools, cold extrusion rams, tools subject to extensive mechanical stresses.
Heavy roughing work, machining high tensile steels, difficult to machine cast steel, grey cast iron, chill castings NF metals & non-metal material.
Turning, planning & shaping tool, rough milling cutters.
End mills, hobs, shaper cutters, cold forming tools, stamping & punching tools, cutting tools, working rolls for cluster rolling stand.
Highly stressed tools for machining high-strength steels, cast steels & difficult machinable materials at high cutting feed and speed.
